₨ 440,000

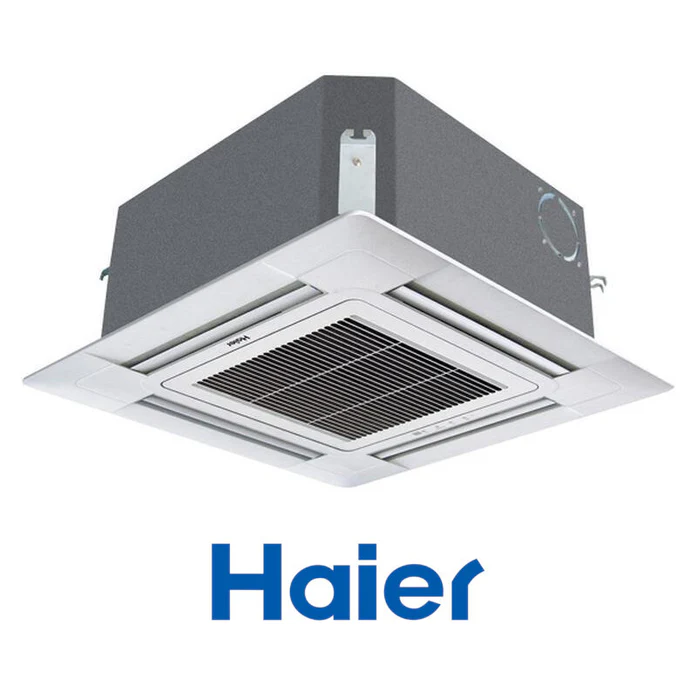

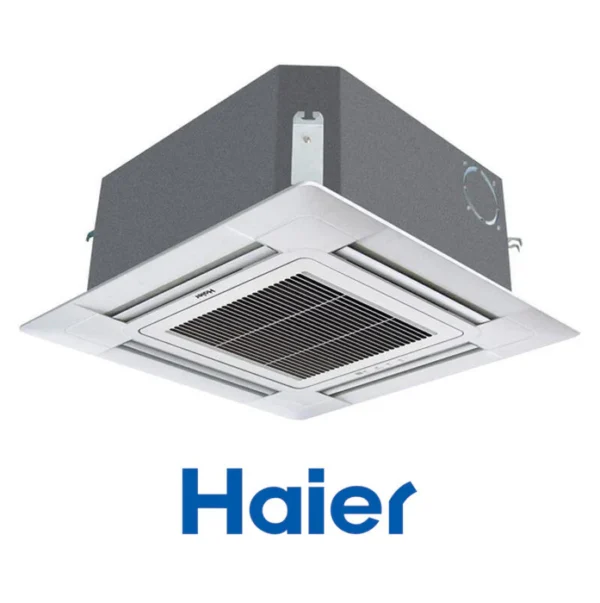

Haier HBU‑24HE/DC‑QB‑T3 is a powerful 2 Ton inverter ceiling cassette AC designed for commercial and premium residential use in Pakistan. With 24,000 BTU cooling capacity, eco‑friendly R410A refrigerant, and 360° airflow, it delivers strong heat & cool performance even in extreme T3 conditions up to 52°C.
| Specification | Details |
|---|---|
| Cooling Capacity | 14 kW (≈ 24,000 BTU) |
| Heating Capacity | 18,000–25,000 BTU (variant dependent) |
| Air Circulation | 1800 m³/h |
| Power Supply | 3 Phase, 380–415V, 50Hz |
| Rated Power Input (Cooling) | 4.92 kW |
| EER/COP | 2.84 W/W |
| Refrigerant | R410A |
| Indoor Dimensions (W×D×H) | 840 × 840 × 290 mm |
| Outdoor Dimensions (W×D×H) | 1008 × 410 × 830 mm |
| Panel Dimensions | 950 × 950 × 60 mm |
| Indoor Noise Levels | 50 / 46 / 42 dB (Hi/Mid/Lo) |
| Outdoor Noise Level | 59 dB |
| Piping Connections | Gas: 19.05 mm / Liquid: 9.52 mm |
| Max Pipe Length | 50 m |
| Max Height Drop | 30 m |
