Original price was: ₨ 485,000.₨ 412,250Current price is: ₨ 412,250.

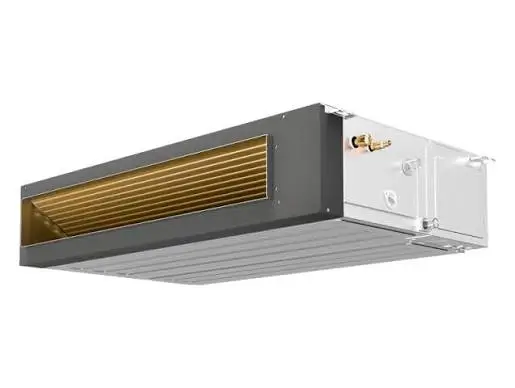

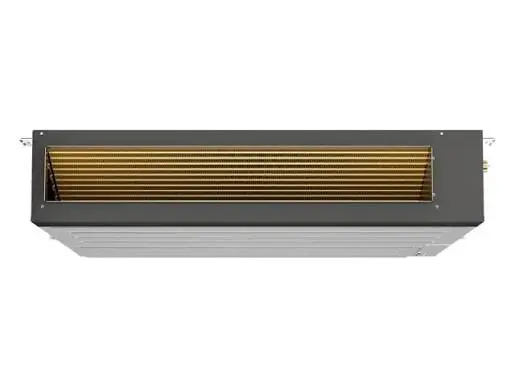

The TCL TCC-24D1WHW 2 Ton Inverter Ducted AC is a full DC inverter ducted air-conditioning system designed to provide efficient cooling and heating for residential and light-commercial applications. It uses R32 refrigerant and is engineered for reliable operation across a wide range of outdoor temperatures.
With ducted installation, the indoor unit can be concealed above a false ceiling, allowing conditioned air to be distributed through connected ducts and outlets for a clean and comfortable indoor environment. The system also supports a wide static-pressure range, making it suitable for different ducting requirements.
The unit provides a rated T1 cooling capacity of 24,200 BTU/h and T3 cooling capacity of 22,000 BTU/h, making it suitable for demanding cooling conditions. The documented heating capacity is approximately 8.1 kW.
The system is designed for wide operating conditions, with the matching product documentation specifying cooling operation from approximately 0°C to 60°C and heating operation from approximately -15°C to 24°C.
The Full DC Inverter system adjusts compressor operation according to the cooling or heating demand. This helps maintain a more stable indoor temperature while reducing unnecessary compressor cycling compared with conventional fixed-speed systems.
The concealed ducted design allows the indoor unit to be installed above a false ceiling with air distributed through ductwork. This provides a cleaner appearance and allows the system to serve multiple air outlets according to the building’s duct design.
The ducted system is designed to work with a wide range of static-pressure requirements, providing flexibility when designing the connected ductwork for different installation conditions.
The air conditioner uses R32 refrigerant, with the documented system charge listed at approximately 1.7 kg for the tested configuration. R32 is widely used in modern air-conditioning systems for its lower global-warming potential compared with older refrigerants.
The system includes a Generator Mode, providing additional flexibility for locations where generator power is used. The exact electrical configuration and generator requirements should be confirmed according to the installation manual and site conditions.
| Specification | Details |
|---|---|
| Brand | TCL |
| Model | TCC-24D1WHW |
| Type | Ducted Air Conditioner |
| Technology | Full DC Inverter |
| Capacity | 2 Ton |
| Cooling Capacity – T1 | 24,200 BTU/h |
| Cooling Capacity – T3 | 22,000 BTU/h |
| Operation | Heat & Cool |
| Installation | Concealed Ducted |
