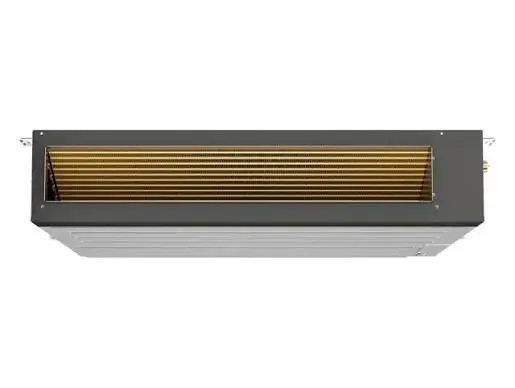

The TCL TCC-48D1WHW is a high-capacity inverter ducted air-conditioning system designed for concealed installation in residential, commercial, and light-commercial spaces. It provides both cooling and heating, with ducted air distribution for a clean appearance and more flexible airflow coverage. TCL’s D1 ducted range uses Full DC Inverter technology, R32 refrigerant, and high-static-pressure operation on applicable models.
The TCL TCC-48D1WHW 4 Ton Inverter Ducted AC offers powerful and efficient climate control while keeping the indoor unit concealed above the ceiling. Its ducted design allows conditioned air to be distributed through connected air ducts, making it suitable for spaces where a clean, centralized HVAC appearance is preferred.
The Full DC Inverter system continuously adjusts compressor operation according to the cooling or heating requirement, helping provide stable indoor temperatures and efficient operation. TCL’s D1 ducted platform is designed for demanding climates, with high-ambient cooling capability and a wide operating range.
The concealed ducted configuration can distribute conditioned air through multiple duct outlets, making it appropriate for offices, villas, shops, restaurants, halls, and other medium-to-large spaces. The D1 range supports high external static pressure up to 200 Pa on 36K–55K models, helping accommodate longer or more complex duct layouts.
Full DC Inverter technology allows the system to modulate its compressor and fan operation instead of repeatedly switching the compressor fully on and off. This helps maintain more consistent temperatures while reducing unnecessary energy consumption during normal operation.
The TCL D1 Tropical T3 ducted series is designed for hot-climate applications, with TCL specifying cooling operation across a wide ambient temperature range. This makes the series suitable for demanding summer conditions.
The ducted system features a slim indoor-unit design intended for concealed ceiling installation. TCL also specifies long-piping capability for applicable models, helping provide greater flexibility when positioning the indoor and outdoor units.
| Specification | Detail |
|---|---|
| Brand | TCL |
| Model | TCC-48D1WHW |
| Type | Inverter Ducted AC |
| Capacity | 4 Ton / 48,000 BTU |
| Operation | Heat & Cool |
| Technology | Full DC Inverter |
| Refrigerant | R32 |
| Installation Type | Concealed Ducted / Ceiling |
| Application | Residential, Commercial & Light Commercial |
| Air Distribution | Ducted |
